VN806 Infrared Remote Control Passive Preamplifier

VN806

STEREO infrared Remote control PASSIVE PREAMPLIFIER

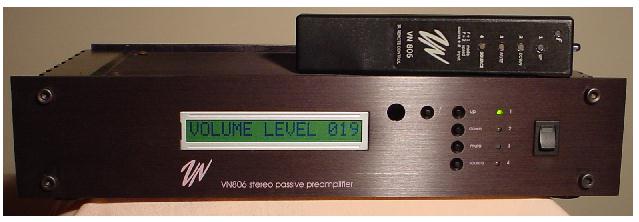

VN806 in linear mode

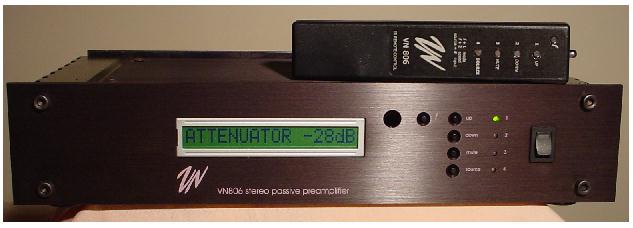

VN806 in logarithmic mode

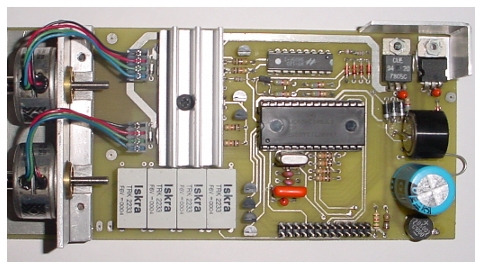

VN806 bipolar stepper motors board

VN is proud to present in the market the first stereo infrared remote control passive preamplifier designed, developed and manufacture in Argentina.

The VN806 is a passive preamplifier stage designed to work as part of highest audio equipments. If necessary an active stage can added, see Options.

Like the earlier version, the new VN806 has no active components in the audio signal path. His hart are two wirewound premium quality potentiometer (see specification) driven by high precision stepper motors, obtaining 480 volume level steps in linear mode and 42 1 dB attenuation levels steps in logarithmic mode. The VN806 has four inputs wired to output by mean of a relays network. Volume level an others information are displayed in a crystal liquid 16 character backlight display. "Function" mode to set the different preamplifier functions. Four programmable motor speed in linear mode and four in logarithmic mode. The manage of all function are in hands of the powerful Motorola microcontroller MC68HC908JL3. The infrared remote control unit manage all functions volume included.

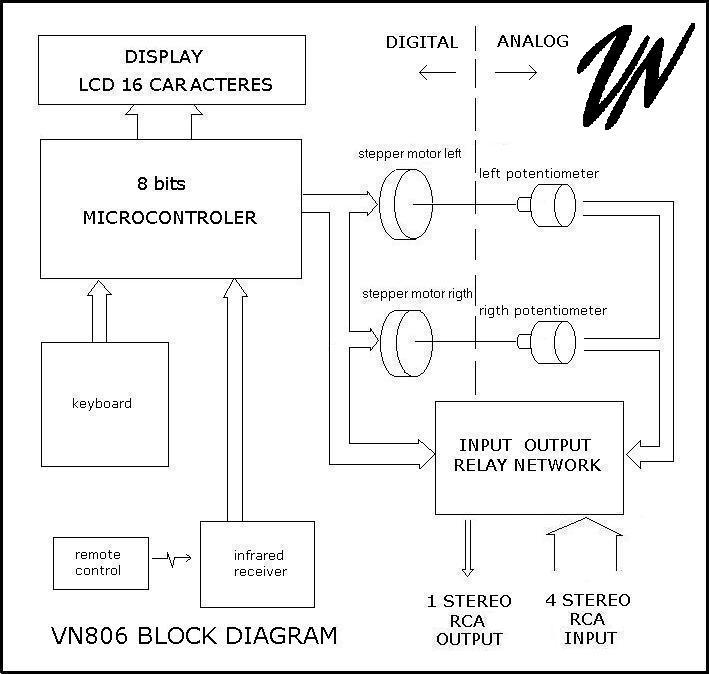

The following block diagram explain the VN806 main parts:

Specifications:

Potentiometers Manufacturer: Bourns.

Type: Precision Instrumentation Potentiometer

Material: wire.

Linearity: 0.25%

Resolution: 0.016%

Noise: 100 ohms ENR

Norm: MIL-STD-202

Life: 1.000.000 revolutions

Motors Type: bipolar stepper motor

Total steps: 480 linear volume steps

42 1dB logarithmic volume steps

Relays Manufacturer: Iskra

Type: Low power signal relay

Contact Material: AgPd30+AuAg8

Norms: IEC 61810-1, IEC60068-2

Life: 20.000.000 operations

Cables

Type: OFC (oxygen free cooper) 30 wires.

Inputs Quantity: Four

Sensibility: Line

Selection: from keyboard or remote control unit

Outputs Quantity: One

Sensibility: Line

Display Type: LCD 16 characters with backlight

Information: volume level, input, resetting, etc.

Remote Control Type: Infrared

Functions: five bottoms, volume up-down, muting, source y function.

four speeds in linear mode and four speeds in log mode.

Opctions:

balanced inputs: you cad add a differential input with two options:

1) passive with transformer (Lundahl LL1527A)

2) active with differential amplifier.

For more information see Balanced

Active gain stage: active stage of +6db gain in two stages: first JFET with voltage gain and second MOSFET pure class A current gain.

Adapter Stage: Active stage of 0db gain. Monostage MOSFET pure class A.

Processor loop: input and output before the potentiometers.
